導熱石墨片(Graphite Sheets)概述

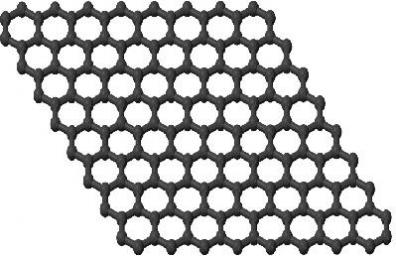

石墨散熱片，是一種全新的導熱散熱材料，具有獨特的晶粒取向，沿兩個方向均勻導熱，片層狀結構可很好地適應任何表面，遮罩熱源與元件的同時改進消費類電子產品的性能。產品均勻散熱的同時也在厚度方面提供熱隔離。

產品特性：表面可以與金屬、塑膠、不乾膠等其它材料組合以滿足更多的設計功能和需要。

低熱阻：熱阻比鋁低40%，比銅低20% ； 重量輕：重量比鋁輕25%，比銅輕75%

高導熱係數：石墨散熱片能平滑貼附在任何平面和彎曲的表面，並能依客戶的需求作任何形式的切割。

導熱石墨片的應用：廣泛的應用於PDP、LCD TV 、Notebook PC、UMPC、Flat Panel Display 、MPU 、Projector 、Power Supply、LED等電子產品 石墨散熱材料。石墨散熱材料已大量應用於通訊工業、醫療設備，SONY/DELL/Samsung筆記本，中興手機，Samsung PDP, PC 之記憶體條，LED基板等散熱。

Graphite film cooling, a new thermal conductivity and heat dissipation materials, has a unique grain orientation, uniform heat conduction along the two directions, the lamellar structure can be well adapted to any surface, shielding the heat source and the components while improving consumer the performance of electronic products. Uniform cooling products,but also in thickness to provide thermal isolation.

Graphite thermal film features:

Product characteristics: surface with metal, plastic, stickers and other material combinations to meet the design features and needs. Low thermal resistance: 40% lower thermal resistance than aluminum, which is lower than copper 20% Light weight: weight 25% lighter than aluminum and 75% lighter than copper The high thermal conductivity: graphite heat sink can be smoothly attached to any flat and curved surfaces, and in accordance with customer demand for any form of cutting.

 The graphite heat dissipation film widely used in PDP, LCD TV, Notebook PC, UMPC The Flat Panel Display,the MPU, Projector, Power Supply, LED and so on electronic products, graphite heat dissipation material. The graphite heat dissipation materials have been widely used in the communications industry, medical equipment, SONY / DELL / Samsung notebook,ZTE mobile phones, Samsung the PDP, the PC of the memory, the LED substrate cooling.

石墨片在手機上應用

目前手機發熱集中體在CPU、螢幕及電池上，散熱一般會考慮CPI降頻，但做為智慧手機都現在而言，已經接近PC機

的結構，所以CPU降頻並不是最好的解決方案，採用石磨散熱片才是最佳方案。

石墨片在手機上的使用分別在充電模組、主晶片、電池後殼、螢幕背面基板、中框、後框、聽筒和送話器周邊的電磁

模組；採用石磨散熱膜後，現戶在使用過程中將幾乎不會體會到手機發燙的困擾。

Graphite sheets application on mobile phones

Currently the temperature from the mobile phones is concentrated on the CPU, screen, and the battery. It’s is a general

considerate to cool down CPI. But now the structure of smart phones is closed to PC, using Graphite sheets is the best

solution than reducing its CPU frequency.

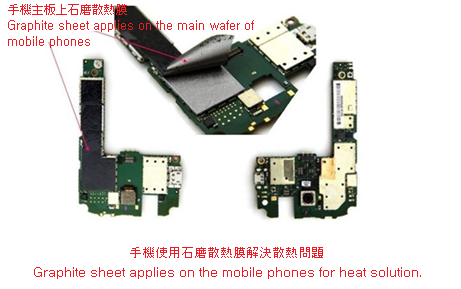

Graphite sheet can be applied on the phone charging module, the main chip, the battery case, the screen on the back of the substrate,

middle frame, back frame, handset and microphone surrounding electromagnetic module; With Graphite sheet application,

the mobile phone users could hardly feel the high temperature.
